Products DetailItems | Specification |

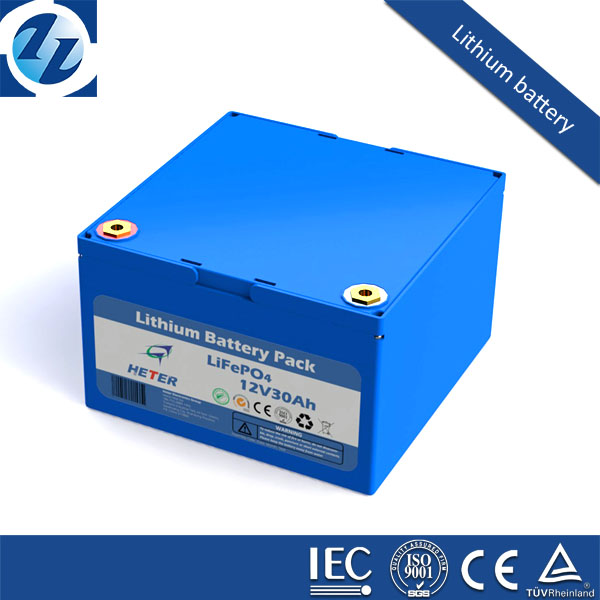

| Product Name | LiFePO4 battery pack |
| Product Model | HT-4IFR12.8-30-Y |
| Nominal Voltage | 12.8V |
| Rated Capacity | 28.8±1Ah(C5) |
| Energy | 384 Wh |
| Internal Resistance | ≤40mΩ |
| Weight | 3.9±0.1kg |
| Size | (175±1)*(175±1)*(112±1)mm |
| Voltage | Charge voltage is 14.4±0.15V, Standard cutoff voltage is about 10.0V |
| Charger Current | ≤15A |
| Discharge Current | 20A |
| Max Continuous Current | ≤30A(≤5min)（can be customized design） |
| Passive Protection Function | over charge protection, over discharge protection, over current protection, temperature protection, balanced function |
International Certifications

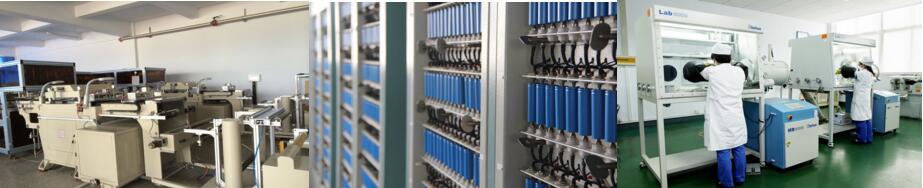

Production Line
Product Concept
1. Select self-made excellent battery single cell.
2. Use the unique integration technology for the battery management system of Heter.
3. Design and fabricate the first class power energy storage system.
4. Provide a complete power source system solution.
Application Range
The product is applied in power battery field such as various electric motor vehicles, electric tools, power drive device and energy storage power source field such as cap lamps, communication base stations, UPS backup power sources, wind and solar power storage.
Shipping:
1. 3~15working days depending on order quantity
2. UPS, DHL, FedEx, TNT or by sea available
Payment & Term:
1. T/T , L/C, PAYPAL , Western Union or Cash
2. FOBShenzhen or FOBHongKong
Warranty:
2~5years
Addtional Services:
1. Custom designed battery packs
2. OEM welcome
Our Advantages:
1.We are the ONLY one supplier approved by China Military
2.Global liablity insurance - PICC US$8million insured
3.UL, IEC, CE, MSDS, UN38.3, ISO9001, ISO14969 approved
4.>2000 life cycles @ 100% DOD, > 3000 life cycles @ 80% DOD
